QVR-03-01
3DoF · classroom
QVR-03-03
3DoF · next-gen
QXR-06-07
6DoF · mixed reality flagship
QVR-06-03
6DoF tethered · sim-grade

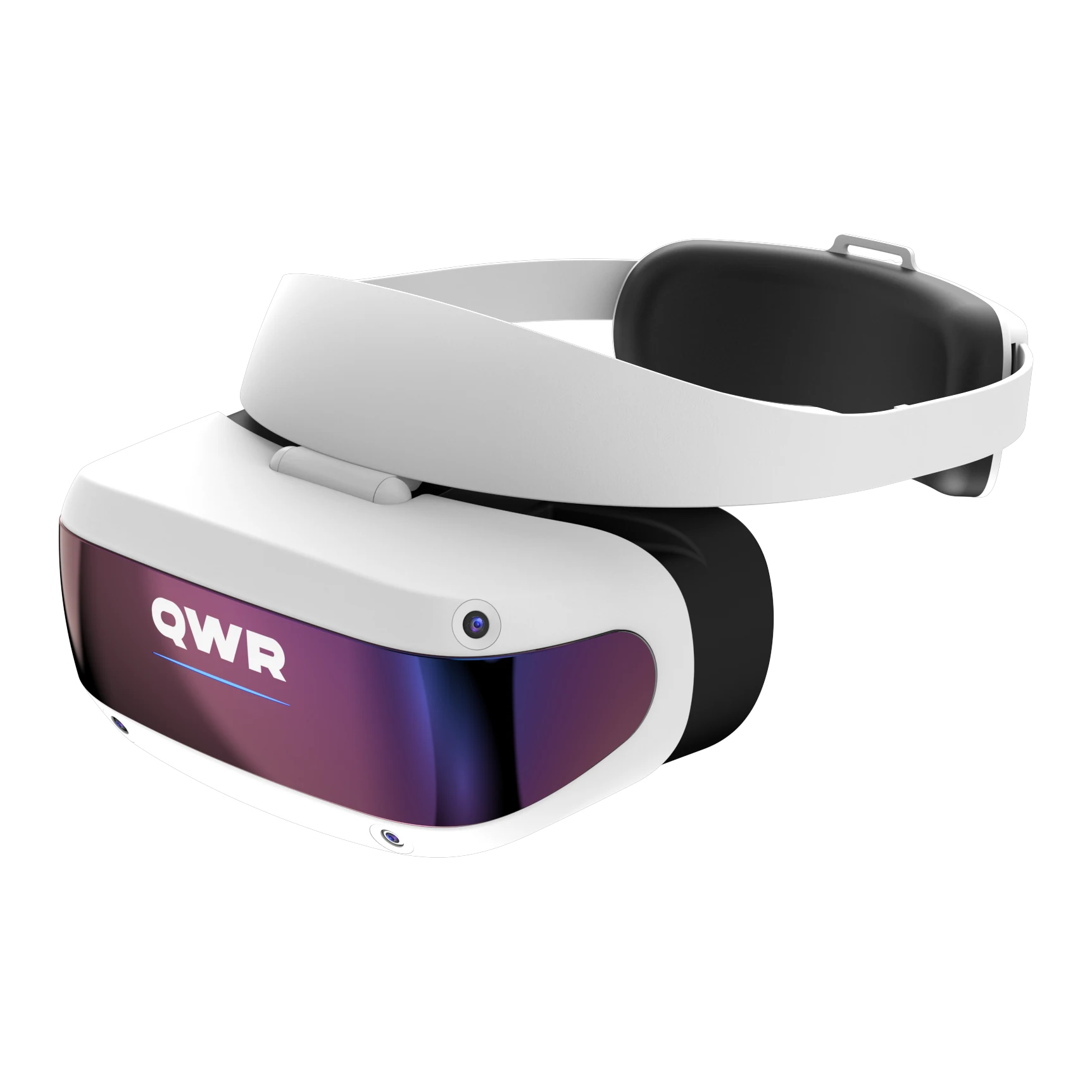

QVR-06-03
Precision Tethered VR.
Maximum fidelity for professional simulation. Direct desktop GPU power via DisplayPort or USB-A, delivering stable 3664×1920 resolution at 120 Hz.
SoC
PC GPU-driven (no internal SoC)
Tracking
6DoF inside-out
Optics
Fresnel Lens
Weight
285 gms
Fit check
Is this the right model?
Choose this model
Maximum fidelity, tethered.
3664×1920 resolution at 120 Hz, powered directly by a desktop GPU via DisplayPort or USB-A — for power users who don’t need standalone.
Consider instead
QXR-06-10
If you need standalone 6DoF with no PC dependency, for field or classroom deployment.
Consider instead
QXR-06-07
If you need standalone Micro-OLED passthrough mixed reality instead of a tethered PC rig.
Specifications
Professional configurator. Maximum fidelity.
Full specification
Compute
| Processor | PC GPU-driven (no internal SoC) |
| Memory | - |
| Storage | - |
Display
| Display Type | Fast LCD |
| Resolution | 3664 x 1920 |
| Refresh Rate | 120 Hz |
| Field of View (FoV) | 116° |
| Optics | Fresnel Lens |
| Screen Size | 5.46" |
Interpupillary Distance (IPD)
| Compatibility Range | 54 -74mm |
| IPD Adjustment | - |
Tracking & Sensing
| Tracking Cameras | 4 x greyscale global shutter cameras |
| Passthrough Camera | - |
| Passthrough Resolution | - |
| Sensors | 3-axis GyTo / 3-axis ACCL sensor |
| Infrared | - |
| Eye Tracking | - |
| Distance Sensing | - |
| Hand Tracking | - |
Input & Control
| Controller Count | 2 |
| Controller Type | 6 DoF Controller |
| Controller Charge | External Batteries |
| Voice Control | - |
Connectivity
| Wi-Fi | - |
| Bluetooth | - |
| Interface | Display Port Cable / USB-A |
| Wireless Operation | No |
PC & Streaming
| PC Streaming Wireless | - |
| PC Streaming Wired | Yes |
| PC Client Application | Yes |
| Screen Mirroring | Yes |
Audio
| Output | Dual Speakers |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | - |
Battery
| Battery Solution | - |
| Battery | - |
| Controller Battery | External Batteries |
Design
| Ergonomics | Light Weight |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | 285 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | - |
| This model | QVR-03-01 | QVR-03-03 | QXR-06-07 | |
|---|---|---|---|---|
| Compute | ||||
| Processor | PC GPU-driven (no internal SoC) | Snapdragon® XR1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2+ Gen 2 |
| Memory | - | 6 GB | 6 GB | 16 GB LPDDR5X |
| Storage | - | 128 GB | 128 GB | 512 GB (UFS 3.1) |
| Display | ||||
| Display Type | Fast LCD | Fast LCD | Fast LCD | Micro-OLED |
| Resolution | 3664 x 1920 | 2560 x 1440 | 3664 x 1920 | 7104 x 3840 |
| Refresh Rate | 120 Hz | 90Hz | 90Hz | 90 Hz / 120 Hz |
| Field of View (FoV) | 116° | 100° | 100° | 103° |
| Optics | Fresnel Lens | Fresnel lenses | Fresnel lenses | Pancake lens |
| Screen Size | 5.46" | - | - | - |
| Interpupillary Distance (IPD) | ||||
| Compatibility Range | 54 -74mm | - | - | 51-78mm |
| IPD Adjustment | - | - | - | Automatic |
| Tracking & Sensing | ||||
| Tracking Cameras | 4 x greyscale global shutter cameras | - | - | 11-camera system with RGB passthrough |
| Passthrough Camera | - | - | - | 2 |
| Passthrough Resolution | - | - | - | - |
| Sensors | 3-axis GyTo / 3-axis ACCL sensor | - | - | 7 sensor types |
| Infrared | - | - | - | 22 infrared LEDs |
| Eye Tracking | - | - | - | Supported |
| Distance Sensing | - | - | - | Supported |
| Hand Tracking | - | - | - | Supported |
| Input & Control | ||||
| Controller Count | 2 | 1 | 1 | 2 |
| Controller Type | 6 DoF Controller | 3 DoF Controller | 3 DoF Controller | 6DoF Halo-Free Controllers |
| Controller Charge | External Batteries | External Batteries | External Batteries | Rechargeable |
| Voice Control | - | - | - | Supported |
| Connectivity | ||||
| Wi-Fi | - | Supported | Supported | Supported |
| Bluetooth | - | Supported | Supported | Supported |
| Interface | Display Port Cable / USB-A | Micro USB | USB-C | USB-C |
| Wireless Operation | No | No | No | Yes |
| PC & Streaming | ||||
| PC Streaming Wireless | - | - | - | Supported |
| PC Streaming Wired | Yes | - | - | Supported |
| PC Client Application | Yes | - | - | Supported |
| Screen Mirroring | Yes | Supported | Supported | Supported |
| Audio | ||||
| Output | Dual Speakers | Dual Speakers | Dual Speakers | 3D Spatial Audio Supported |
| Speakers | Integrated surround speakers | Integrated surround speakers | Integrated surround speakers | Integrated surround speakers |
| Microphones | Built-in | Built-in | Built-in | Built-in |
| 3.5 mm Audio Jack | - | Supported | Supported | - |
| Battery | ||||
| Battery Solution | - | Internal Battery | Internal Battery | Internal Battery + External Battery |
| Battery | - | 4000 mAh | 4000 mAh | 5060 mAh |
| Controller Battery | External Batteries | External AAA Batteries | External AAA Batteries | Rechargeable |
| Design | ||||
| Ergonomics | Light Weight | Head Strap | Head Strap | Battery at the Back |
| Touch Pad | - | Supported | Supported | - |
| Memory Card Slot | - | Supported | Supported | - |
| Weight | 285 gms | 350 gms | 350 gms | 650 g |
| Weight Distribution | Weight Distributed | Full Frontal | Full Frontal | 3:2 balanced design |
| Diopter Adjustment | - | - | - | - |
Configurability
What you configure. What we hold the line on.
You configure
- ✓ SoC pass-through GPU tier (via host PC)
- ✓ External CMF and branding
- ✓ Interface: DisplayPort or USB-A
QWR holds the line
- ● 3664×1920 Fresnel optics
- ● Sovereign, clean firmware architecture
- ● DPDP Act compliant, offline-first operation
Who this is for
Five audiences, one platform.
Highest per-eye resolution in this SKU family
Sovereign IP with no foreign kill switches
Built for power-user co-branded hardware deals
Direct desktop GPU rendering via DisplayPort or USB-A
4-camera inside-out tracking for precision engineering review
Stable 3664×1920 resolution for full-scale prototyping
For institutional & research buyers
Precision simulation for research labs.
Request Procurement Docs →BIS certified for institutional procurement
Sovereign IP, clean firmware architecture
Make in India Class 1 sourcing
Flight simulation with readable dials and high-fidelity textures
Advanced tactical wargaming rendered on classified workstation hardware
No foreign kill switches, sovereign-manufactured
Full PC client application support
DisplayPort and USB-A tethered rendering pipeline
QWR SDK for high-fidelity engineering and simulation apps
Trust
Maximum fidelity. Made in India.
When your application requires maximum visual fidelity, high-precision engineering, realistic flight simulation, or classified defence wargaming, QVR-06-03 is the sovereign choice.
