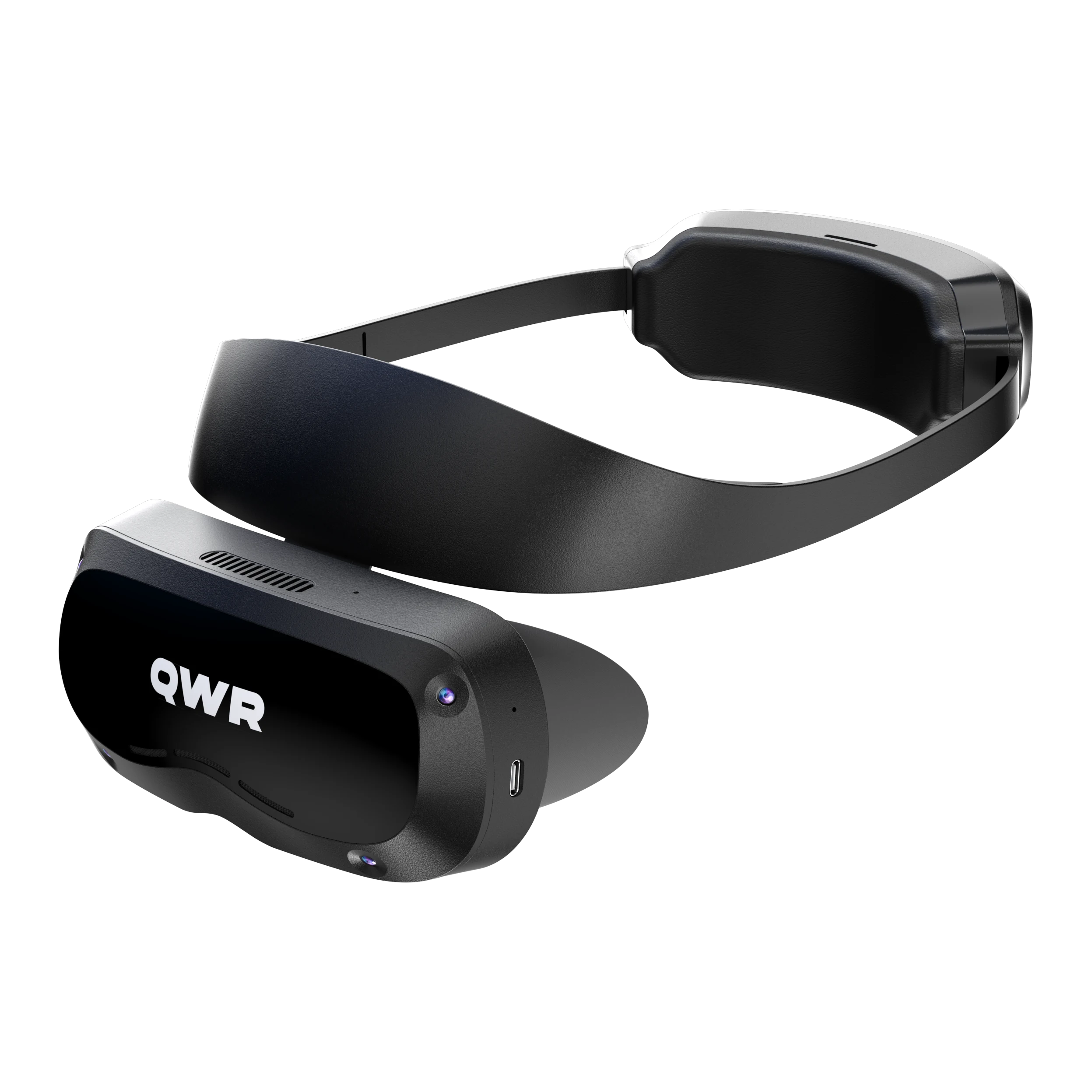

XR — 6DoF All-In-One
QXR-06-06
Micro-OLED 6DoF. 3382 PPI, 7104×3840, eye tracking, 235 g, external battery.
01 · Position in category
QXR-06-06 sits in QWR's 6DoF standalone XR bucket alongside seven sibling SKUs. It runs Snapdragon XR2+ Gen 2 with 8 GB / 128 GB, paired with a Micro-OLED 7104×3840 display — the same panel resolution as the flagship QXR-06-07, and far above the bucket's Fast LCD SKUs. Eye tracking is supported, a feature shared only with the flagship in this bucket. At 235 g with a 200 mAh internal battery and external-battery ergonomics, it is the lightest standalone SKU in the bucket.
02 · Compute
| Processor | Snapdragon® XR2+ Gen 2 |
| Memory | 8 GB |
| Storage | 128 GB |
03 · Display
| Display Type | Micro-OLED |
| Resolution | 7104 x 3840 |
| Refresh Rate | 90Hz |
| Field of View (FoV) | 105° |
| Optics | Pancake Lens |
| Screen Size | - |
Micro-OLED matches the flagship QXR-06-07’s panel resolution in this bucket — every other sibling runs Fast LCD.
04 · Interpupillary Distance (IPD)
| Compatibility Range | Supported |
| IPD Adjustment | Automatic |
Diopter adjustment is supported, tying QXR-06-05 as the only two SKUs in this bucket with it.
05 · Tracking & Sensing
| Tracking Cameras | 4 x greyscale global shutter cameras |
| Passthrough Camera | 2 |
| Passthrough Resolution | - |
| Sensors | 3-axis GyTo / 3-axis ACCL sensor |
| Infrared | - |
| Eye Tracking | Supported |
| Distance Sensing | Supported |
| Hand Tracking | Supported |
Eye tracking is supported, a feature shared with only the flagship QXR-06-07 in this bucket — no other sibling lists it.
06 · Input & Control
| Controller Count | 2 |
| Controller Type | 6 DoF Controller |
| Controller Charge | External Batteries/ / Rechargeable |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | Supported |
| Bluetooth | Supported |
| Interface | USB-C |
| Wireless Operation | Yes |
08 · PC & Streaming
| PC Streaming Wireless | Supported |
| PC Streaming Wired | Supported |
| PC Client Application | Yes |
| Screen Mirroring | Supported |
09 · Audio
| Output | Dual Speakers |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | - |
10 · Battery
| Battery Solution | - |
| Battery | - |
| Controller Battery | Rechargeable |
200 mAh internal battery is the lowest disclosed capacity in the bucket by a wide margin, paired with external-battery ergonomics and the bucket’s lightest weight at 235 g.
11 · Design
| Ergonomics | - |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | 235 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | Supported |
12 · Across the category
| QXR-06-06 | QXR-06-01 | QXR-06-02 | QXR-06-03 | QXR-06-04 | QXR-06-05 | QXR-06-07 | QXR-06-10 | |
|---|---|---|---|---|---|---|---|---|
| SoC | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 2 |
| Camera | — | — | — | — | — | — | — | — |
| Display | Micro-OLED | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Micro-OLED | Fast LCD |
| Battery | — | 5500 mAh | >4000 mAh | >5000 mAh | 5500 mAh | 5500 mAh | 5060 mAh | 6000 mAh |
| Weight | 235 gms | 490 gms | 500 gms | 500 gms | 540 gms | 450 gms | 650 g | <430 gms (incl. headband, face mask) |
