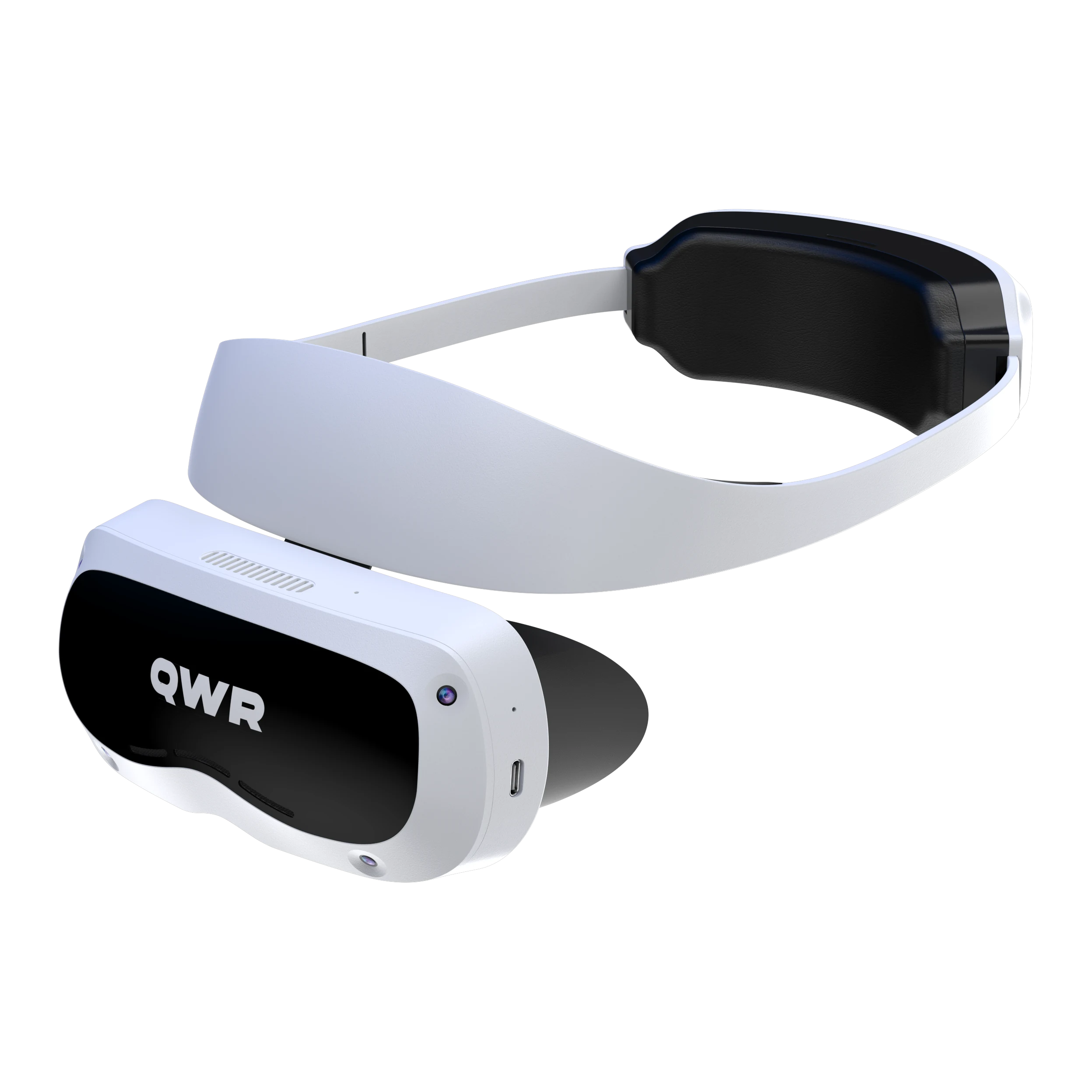

XR — 6DoF All-In-One
QXR-06-05
Standalone 6DoF. Pancake 4620×2160, dual passthrough, flip-up display, 450 g.
01 · Position in category
QXR-06-05 sits in QWR's 6DoF standalone XR bucket alongside seven sibling SKUs. It runs Snapdragon XR2 Gen 1 with 8 GB / 128 GB, paired with a pancake 4620×2160 display on a 2.24-inch panel — the smallest disclosed panel size in the bucket — with manual IPD 59–68 mm and diopter adjustment, a combination shared only with QXR-06-06. It is also the only SKU in this bucket with a flip-up display. 5500 mAh, 450 g.
02 · Compute
| Processor | Snapdragon® XR2 Gen 1 |
| Memory | 8 GB |
| Storage | 128 GB |
03 · Display
| Display Type | Fast LCD |
| Resolution | 4620 x 2160 |
| Refresh Rate | 90Hz |
| Field of View (FoV) | 105° |
| Optics | Pancake Lens |
| Screen Size | 2.24" |
The 2.24-inch panel is the smallest disclosed screen size in the bucket — QXR-06-04 is the only other SKU to publish one, at 2.56 inches.
04 · Interpupillary Distance (IPD)
| Compatibility Range | 59mm - 68mm |
| IPD Adjustment | Manual |
Diopter adjustment is supported, a combination shared with only QXR-06-06 in this bucket; the rest don’t list diopter adjustment.
05 · Tracking & Sensing
| Tracking Cameras | 4 x greyscale global shutter cameras |
| Passthrough Camera | 2 |
| Passthrough Resolution | - |
| Sensors | Accelerometer, Gyroscope |
| Infrared | - |
| Eye Tracking | - |
| Distance Sensing | - |
| Hand Tracking | Supported |
06 · Input & Control
| Controller Count | 2 |
| Controller Type | 6 DoF Controller |
| Controller Charge | External Batteries/ / Rechargeable |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | Supported |
| Bluetooth | Supported |
| Interface | USB-C |
| Wireless Operation | Yes |
08 · PC & Streaming
| PC Streaming Wireless | Supported |
| PC Streaming Wired | Supported |
| PC Client Application | Yes |
| Screen Mirroring | Supported |
09 · Audio
| Output | Dual Speakers |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | - |
10 · Battery
| Battery Solution | Internal Battery |
| Battery | 5500 mAh |
| Controller Battery | External Batteries |
5500 mAh ties QXR-06-01 and QXR-06-04 for the bucket’s largest disclosed battery.
11 · Design
| Ergonomics | Flip Up Display / Battery at the Back |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | 450 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | Supported |
Flip-up display is unique to this SKU in the bucket — no other sibling lists it in the Ergonomics row.
12 · Across the category
| QXR-06-05 | QXR-06-01 | QXR-06-02 | QXR-06-03 | QXR-06-04 | QXR-06-06 | QXR-06-07 | QXR-06-10 | |
|---|---|---|---|---|---|---|---|---|
| SoC | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 2 |
| Camera | — | — | — | — | — | — | — | — |
| Display | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Micro-OLED | Micro-OLED | Fast LCD |
| Battery | 5500 mAh | 5500 mAh | >4000 mAh | >5000 mAh | 5500 mAh | — | 5060 mAh | 6000 mAh |
| Weight | 450 gms | 490 gms | 500 gms | 500 gms | 540 gms | 235 gms | 650 g | <430 gms (incl. headband, face mask) |
