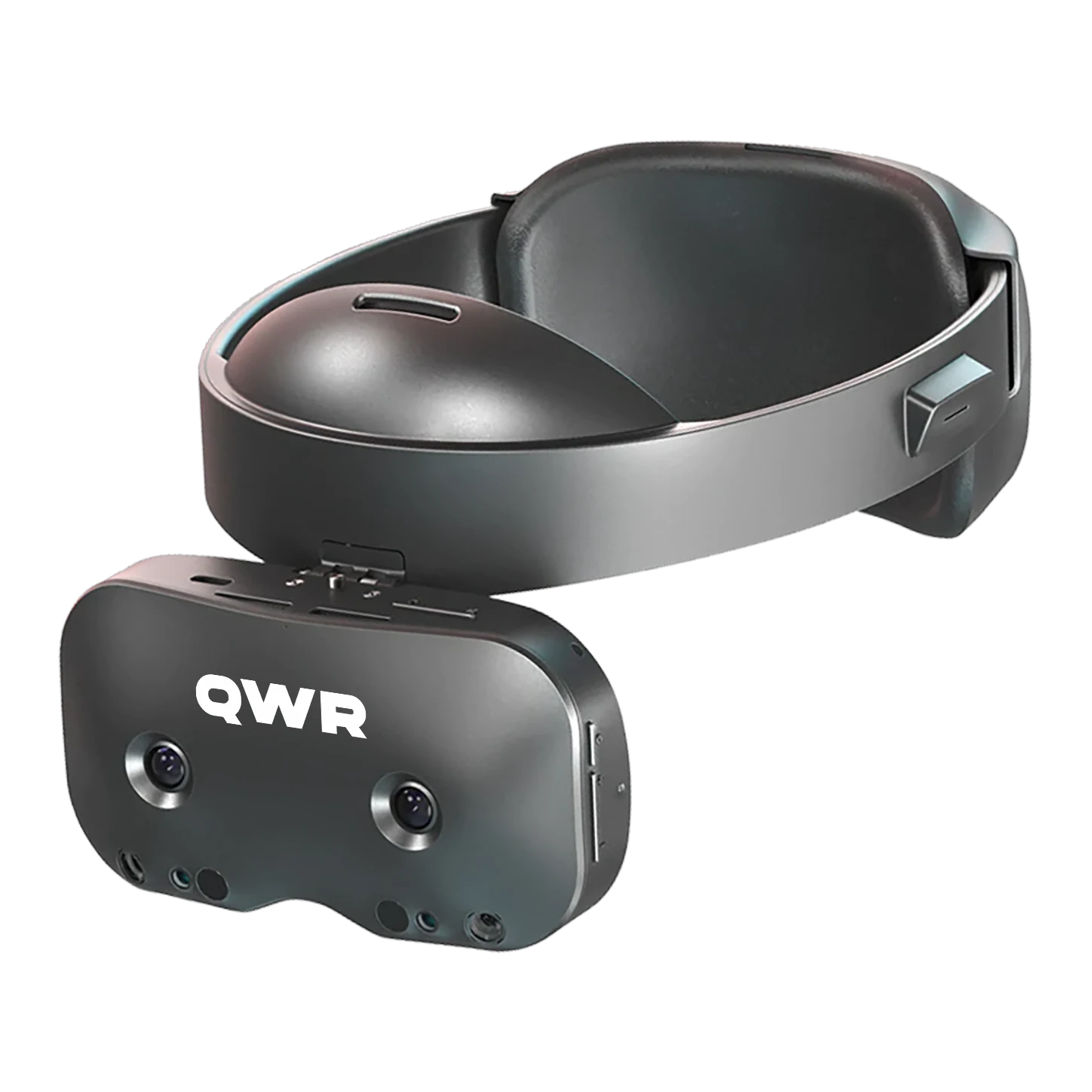

XR — 6DoF All-In-One
QXR-06-02
Standalone 6DoF XR. Dual passthrough 1600×1600 per eye, 500 g.
01 · Position in category
QXR-06-02 sits in QWR's 6DoF standalone XR bucket alongside seven sibling SKUs. It runs the bucket's lowest standalone RAM configuration — 6 GB on Snapdragon XR2 Gen 1 — paired with a 3200×1600 Fresnel-lens display and dual passthrough cameras specified at 1600×1600 per eye. Battery is listed as >4000 mAh at 500 g, with a memory card slot supported.
02 · Compute
| Processor | Snapdragon® XR2 Gen 1 |
| Memory | 6 GB |
| Storage | 128 GB |
6 GB RAM is the lowest disclosed figure in this bucket — the rest run 8 GB or 16 GB (QXR-06-10 does not disclose memory).
03 · Display
| Display Type | Fast LCD |
| Resolution | 3200 x 1600 |
| Refresh Rate | 90Hz |
| Field of View (FoV) | 90° |
| Optics | Fresnel Lens |
| Screen Size | - |
04 · Interpupillary Distance (IPD)
| Compatibility Range | 56mm - 72mm |
| IPD Adjustment | Manual |
05 · Tracking & Sensing
| Tracking Cameras | 4 x greyscale global shutter cameras |
| Passthrough Camera | 2 |
| Passthrough Resolution | 1600 x 1600 per eye |
| Sensors | 2 visible light cameras / Accelerometer, Gyroscope |
| Infrared | - |
| Eye Tracking | - |
| Distance Sensing | - |
| Hand Tracking | Supported |
Dual passthrough is specified at 1600×1600 per eye — QXR-06-01 shares the same 2-camera passthrough hardware but doesn’t disclose a resolution figure for it.
06 · Input & Control
| Controller Count | 2 |
| Controller Type | 6 DoF Controller |
| Controller Charge | External Batteries |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | Supported |
| Bluetooth | Supported |
| Interface | USB-C |
| Wireless Operation | Yes |
08 · PC & Streaming
| PC Streaming Wireless | Supported |
| PC Streaming Wired | Supported |
| PC Client Application | Yes |
| Screen Mirroring | Supported |
09 · Audio
| Output | Dual Speakers |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | Supported |
10 · Battery
| Battery Solution | Internal Battery |
| Battery | >4000 mAh |
| Controller Battery | External Batteries |
Battery is listed as >4000 mAh, the lowest disclosed floor among the bucket’s 6DoF standalone SKUs (others range from >5000 mAh to 5500 mAh).
11 · Design
| Ergonomics | Battery at the Back |
| Touch Pad | - |
| Memory Card Slot | Supported |
| Weight | 500 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | - |
Memory card slot is supported — the only SKU in this bucket that lists one.
12 · Across the category
| QXR-06-02 | QXR-06-01 | QXR-06-03 | QXR-06-04 | QXR-06-05 | QXR-06-06 | QXR-06-07 | QXR-06-10 | |
|---|---|---|---|---|---|---|---|---|
| SoC | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 2 |
| Camera | — | — | — | — | — | — | — | — |
| Display | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Micro-OLED | Micro-OLED | Fast LCD |
| Battery | >4000 mAh | 5500 mAh | >5000 mAh | 5500 mAh | 5500 mAh | — | 5060 mAh | 6000 mAh |
| Weight | 500 gms | 490 gms | 500 gms | 540 gms | 450 gms | 235 gms | 650 g | <430 gms (incl. headband, face mask) |
